Model Versions
Channel Options
QZ-96W-UNV-24V-DMX-1CH-BK |
QZ-96W-UNV-24V-DMX-2CH-BK |
QZ-96W-UNV-24V-DMX-3CH-BK |
QZ-96W-UNV-24V-DMX-4CH-BK |
Q-Tran
®

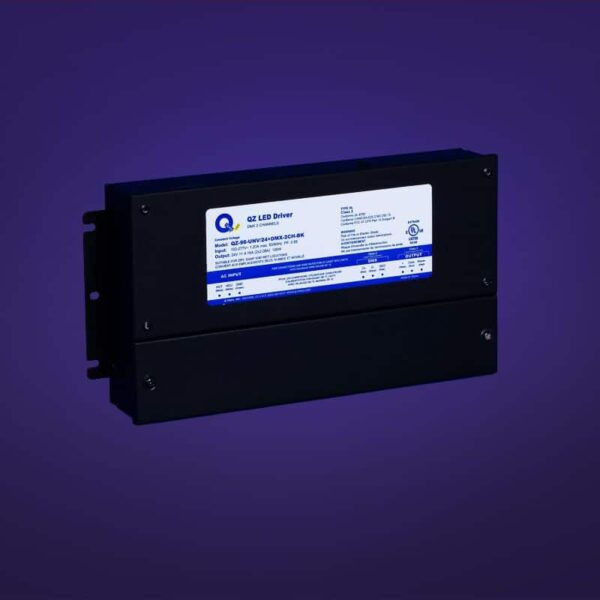

QZ-DMX Multi-Channel LED Driver
Use Q-Tran Drivers to Power IllumiTile®
The QZ-DMX is a versatile Class 2 LED driver with DMX control capabilities with 24VDC (96W) constant voltage output. This innovative LED driver features up to 4 channel outputs that can power static white, static color, white-tunable, warm dim and dynamic color LED products. It may be configured with the Q-Tran NFC App fthat allows reading and writing DMX Addresses, along with adjustment of the output voltage.
Constant 24V Volt (CV) Output
8 Bit DMX Control (DMX512)
RDM Addressing
NFC App for DMX Addressing & Voltage Adjustment
Adjustable Output Voltage Range: 24V-26V
IP66 Rated
Suitable for Indoor Use
Vertical or Horizontal Surface Mount
Primary (AC) Input Voltage is Universal (100-277V)
Wide Operating Temperature Range: -40˚F to +140˚F
UL & cUL listed
Type HL Rated
Compliant to FCC 47 CFR Part 15 Subpart B
5 year warranty (from Q-Tran)
CATEGORY:
Q-Tran
IllumiTile® Applications
Add a Title
Add a Title
Add a Title
Add a Title
Add a Title
Add a Title
Add a Title
Add a Title
ULTRA-VERSATILE DESIGN
IllumiTile® Light Engine (ILE) offers an innovative, high quality and very simple solution to create a large, flat LED array for whatever want to you build it into. Edge-lit solutions don’t even come close to the light output capability and versatility of IllumiTile®. Plus, IllumiTile® Light Engines have patented design and are UL Listed.
SIMPLE LAYOUT & CONNECTIVITY
IllumiTile® LED arrays use the same IllumiSnap™ connections that are used in most other IllumiSci© LED lighting system devices. This means that connecting a system can be as simple as snapping together IllumiSci’s® pre-configured devices with IllumiSnap connectors or harnesses.
WIDE DISPERSION
Get very bright, wide and even dispersion (no noticeable spotting) at just one inch from the IllumiTile® array with most 1/4” diffusion materials. The IllumiTile® patented technology makes it possible to configure to your heart’s desire!
ENERGY EFFICIENT
As with all of IllumiSci’s® products, IllumiTile LED arrays offer a lower power, lower heat and reliable “green” solution compared to many other lighting devices. Note that UL Compliance requires using only IllumiSci® UL Listed harnesses with a Class 2 Power supply.
IllumiPower™ is a designation for LED Drivers and power supplies that have been tested and approved to work with IllumiSci® LED devices. No more headaches trying to determine which power supplies will offer clean and stable power for your illumination project as we have prequalified them for you.
APPROVED QUALITY POWER SUPPLIES
IllumiSci® approves and offers only quality power sources to use with IllumiSci® LED devices. Two types are commonly used, “Desktop” power supplies and commercial LED drivers. Both are constant voltage types that allow you flexibility in scaling your LED array
COMMERCIAL LED DRIVERS
LED Drivers are for commercial installations where high-voltage wiring input within a NEMA enclosure is appropriate. The approved Fulham drivers offer 0-10V dimming as a standard, but is optional for use. They are UL Class 2 certified and offer stable power with over current protection. They have bare wire outputs that can connect to a flying lead IllumiSnap harness for easy connection to an IllumiSci®LED device.
Note that UL Compliance requires using only IllumiSci® UL Listed harnesses with a Class 2 Power supply.
IllumiPower™ is a designation for LED Drivers and power supplies that have been tested and approved to work with IllumiSci® LED devices. No more headaches trying to determine which power supplies will offer clean and stable power for your illumination project as we have prequalified them for you.
